型号 | 额 定 载 荷 kg |
最 低 高 度 mm |
升降 行程 mm |
最大 高度 mm |
平台尺寸 L3W (mm) |
上升 时间 (s) |
电 压 v |
电机 功率 (kw) |
整机 重量 kg |

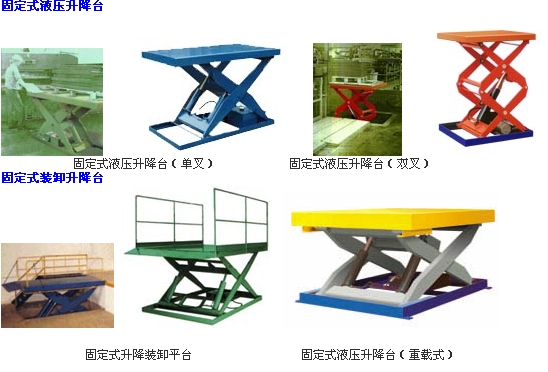

固定式液压升降台(单叉) | |||||||||
SJG0.9-0.5 | 900 | 180 | 500 | 680 | 12203700 | 15 | 380v/50hz | 0.75 | 400 |
SJG0.9-0.85 | 900 | 180 | 850 | 1030 | 12203700 | 16 | 380v/50hz | 0.85 | 400 |
SJG1-0.97 | 1000 | 230 | 970 | 1200 | 15003700 | 19 | 380v/50hz | 1.5 | 450 |
SJG1.5-1.2 | 1500 | 230 | 1200 | 1430 | 168031000 | 31 | 380v/50hz | 1.5 | 600 |
SJG2-0.9 | 2000 | 200 | 900 | 1100 | 130031000 | 31 | 380v/50hz | 1.5 | 500 |
SJG2.65-0.85 | 2650 | 230 | 850 | 1080 | 140031000 | 31 | 380v/50hz | 1.5 | 520 |
SJG2.65-1.2 | 2650 | 210 | 1200 | 1410 | 168031000 | 39 | 380v/50hz | 3 | 620 |
SJG4.5-1.2 | 4500 | 340 | 1200 | 1540 | 200031000 | 56 | 380v/50hz | 5.5 | 1500 |
SJG8-0.5 | 8000 | 480 | 500 | 980 | 280032000 | 20 | 380v/50hz | 5.5 | 2500 |
SJG40-0.5 | 40000 | 830 | 500 | 1330 | 350031800 | 17 | 380v/50hz | 22 | 5500 |
SJG0.5-2.8 | 500 | 460 | 2800 | 3260 | 220031000 | 25 | 380v/50hz | 1.5 | 600 |
固定式液压升降台(双叉) | |||||||||
SJG0.8-1.2 | 800 | 300 | 1200 | 1500 | 120031000 | 16 | 380v/50hz | 1.1 | 420 |
SJG1-1.7 | 1000 | 350 | 1700 | 2050 | 150031000 | 28 | 380v/50hz | 1.5 | 600 |
SJG1.5-1.2 | 1500 | 335 | 1200 | 1535 | 150031000 | 23 | 380v/50hz | 3 | 650 |
SJG1.5-2.4 | 1500 | 500 | 2400 | 2900 | 200031500 | 25 | 380v/50hz | 3 | 900 |
SJG2-1.6 | 2000 | 400 | 1600 | 2000 | 150031200 | 41 | 380v/50hz | 1.5 | 860 |
SJG2.5-2 | 2500 | 620 | 2000 | 2620 | 220031200 | 40 | 380v/50hz | 3 | 1300 |
SJG3-1.2 | 3000 | 415 | 1200 | 1615 | 160031600 | 30 | 380v/50hz | 3 | 1100 |
SJG4-2.3 | 4000 | 660 | 2300 | 2960 | 220031000 | 53 | 380v/50hz | 5.5 | 1500 |
SJG5-1.5 | 5000 | 460 | 1500 | 1960 | 170031000 | 50 | 380v/50hz | 4 | 1450 |
固定式升降装卸台 | |||||||||
SJG2-1.2 | 2000 | 230 | 1200 | 1430 | 200031500 | 26 | 380v/50hz | 3 | 1200 |
SJG2.24-1.5 | 2240 | 230 | 1500 | 1730 | 244031800 | 41 | 380v/50hz | 3 | 1200 |
SJG2.5-2 | 2500 | 410 | 2000 | 2410 | 320032500 | 56 | 380v/50hz | 3 | 2300 |
SJG3-1.2 | 3000 | 240 | 1200 | 1440 | 180031800 | 40 | 380v/50hz | 3 | 1100 |
SJG3-1.7 | 3000 | 450 | 1700 | 2150 | 380031800 | 55 | 380v/50hz | 2.2 | 2400 |
SJG4.5-1.5 | 4500 | 410 | 1500 | 1910 | 260031500 | 50 | 380v/50hz | 3 | 1600 |
SJG7-1.5 | 7000 | 410 | 1500 | 1910 | 260031500 | 48 | 380v/50hz | 5.5 | 2410 |
SJG10-1.6 | 10000 | 600 | 1600 | 2200 | 350032200 | 50 | 380v/50hz | 5.5 | 3700 |
SJG12-1.8 | 12000 | 650 | 1800 | 2450 | 400032200 | 90 | 380v/50hz | 5.5 | 5200 |
