Items

Units

Data

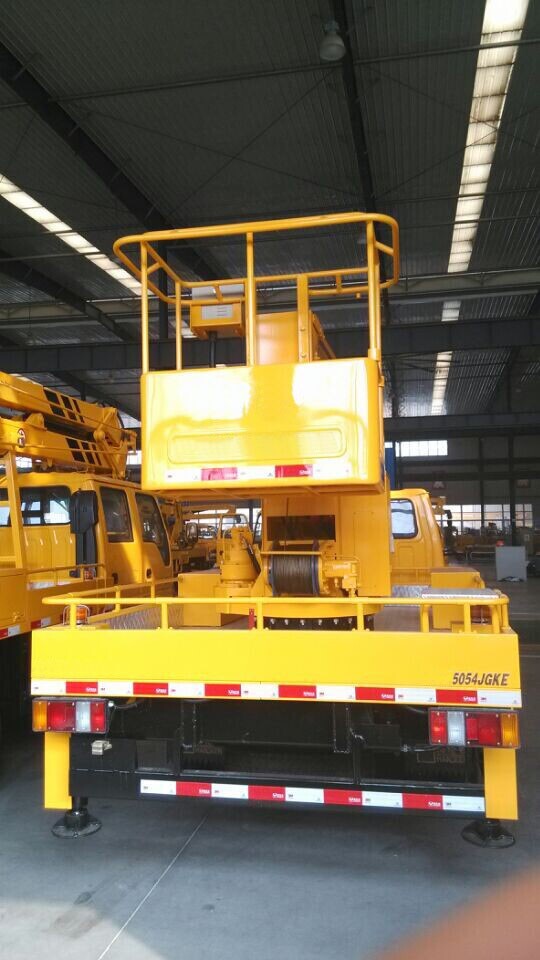

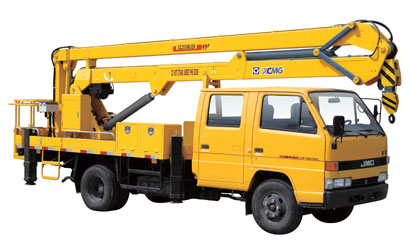

GTTM 14

Traveling

Dimension

(L*W*H)

Aerial work platform

(above turntable)

mm

7170*1200*2000

Sub-frame & accessories

mm

3750*2000*1100

Super-structure kit

mm

7170*2000*2640

Super-structure kit & chassis

mm

7170*2400*2858

Weight

Aerial work platform

(above turntable)

kg

1460

Sub-frame & accessories

kg

1640

Super-structure kit

kg

3100

Super-structure kit & chassis

kg

5250

Cab Capacity

Persons

5

Axle Load

Front

kg

2260

Rear

kg

4200

Max Speed

km/h

110

Min Ground Clearance

mm

200

Approach angle

°

22

Departure angle

c

12

Max. Gradeability

°

35

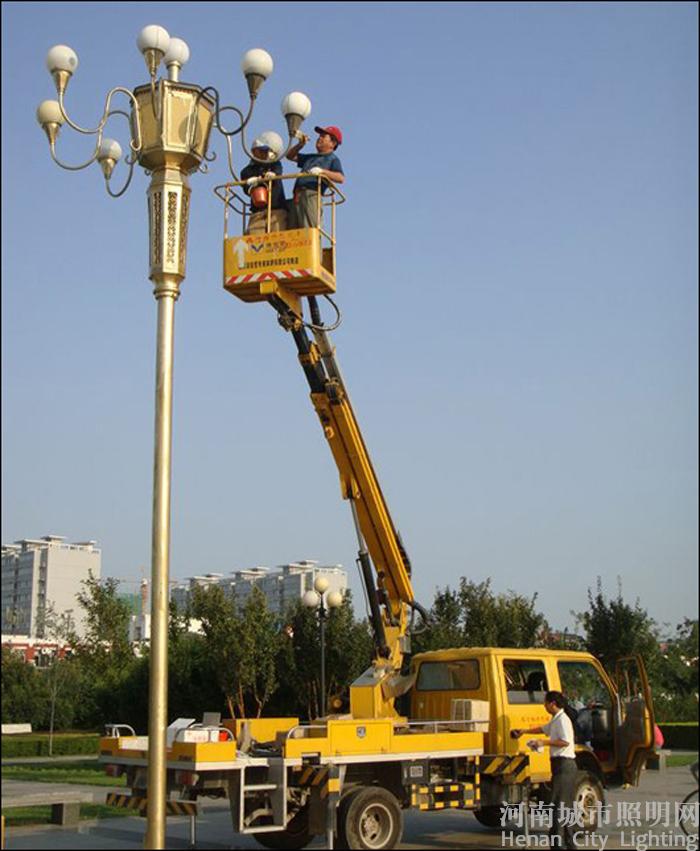

Working performance

Basket Loading Capacity

kg

200

Max Working Height

m

14.6

Max Range @ Max Work Height

m

3

Working Outreach

m

6.3

Max Height @ Max Work Range

m

7.7

Crane Max Lifting Weight (option)

kg

990

Crane Max Lifting Height (option)

m

9

Rotation Speed

r/min

0～2

Outriggers Acting Time

Extract

s

≤80

Extent

s

≤80

Lower Boom Luffing Time

s

≤40

Upper Boom Luffing Time

s

≤40

Telescopic Boom Extent Time

s

≤30

Hoisting Speed

m/min

0～40

Superstructure Kit with slewing bearing and flang, PTO

Platform height

m

12.6

Working height

m

14.6

Outreach

m

7.1

Component

Description

Chassis

JMC JX1060TSG23/1061TSG23, or JAC HFC1065KRT

Engine

JMC JX493ZLQ3 diesel engine, power:85KW, Euro Ⅲ

Cab

Dual-row seat cab, allow 5 people including driver, with air conditioner and radio

Guardrail and Covering Plate

Fixed guardrail, height 650mm, aluminum-alloy anti-skid checker plate

PTO

Flexible shaft operation, PTO directly engages the gearbox.

Working Basket

Welding steel tube structure, dimension: 1000mm*650mm*1100, safe work load: 200kg

Boom

Two-section articulating booms

Slewing Mechanism

360°continuous rotation

Outriggers

H-shape outriggers, can be adjust individually

Control Box

Control box at both basket and turret.

Hydraulic System

Electro-hydraulic control

Safety Device

Boom-outriggers interlock, leveling indicator, limit switch

Leveling System

Mechanical balance rods leveling

Others

Working light, engine stop-start switch, interphone, emergency manual pump.
